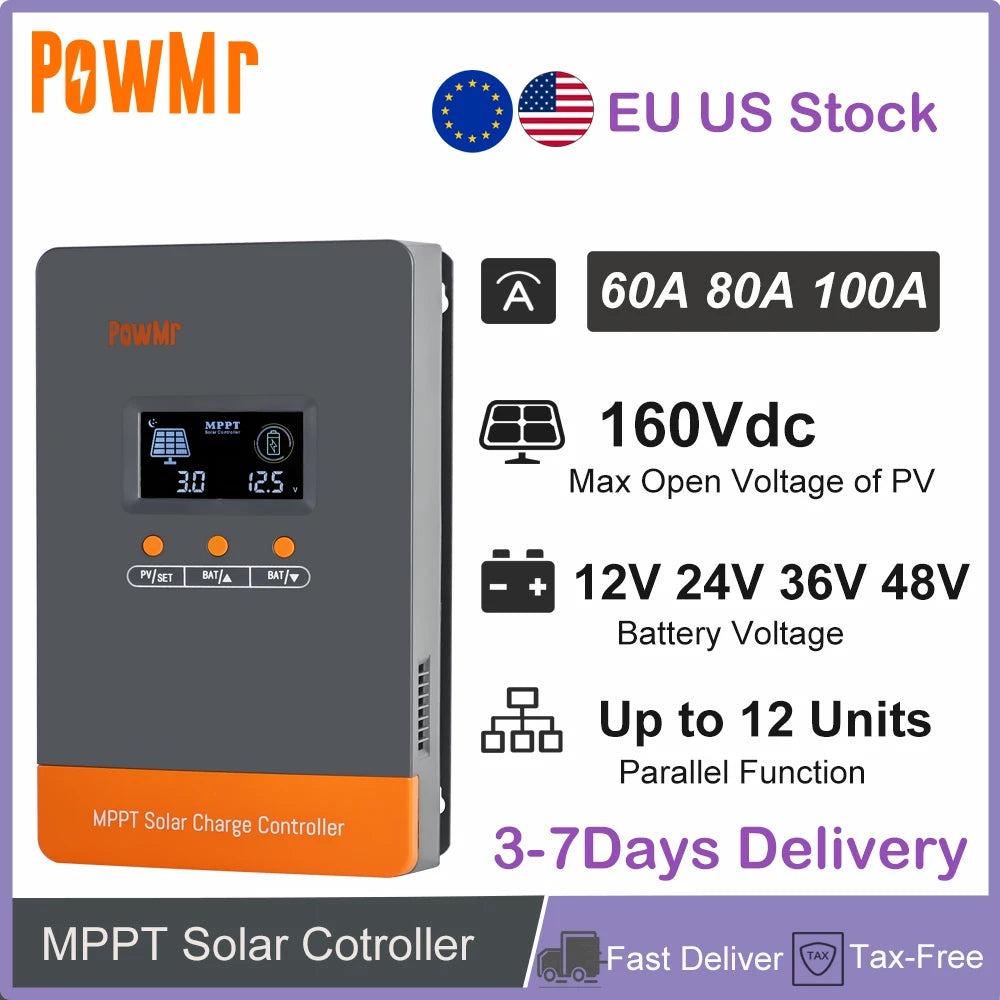

PowMr MPPT Solar Charge Controller 60A 80A 100A For 12V 24V 36V 48V
PowMr MPPT Solar Charge Controller 60A 80A 100A For 12V 24V 36V 48V
Regular price
$145.99 USD
Regular price
$0.00 USD
Sale price
$145.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

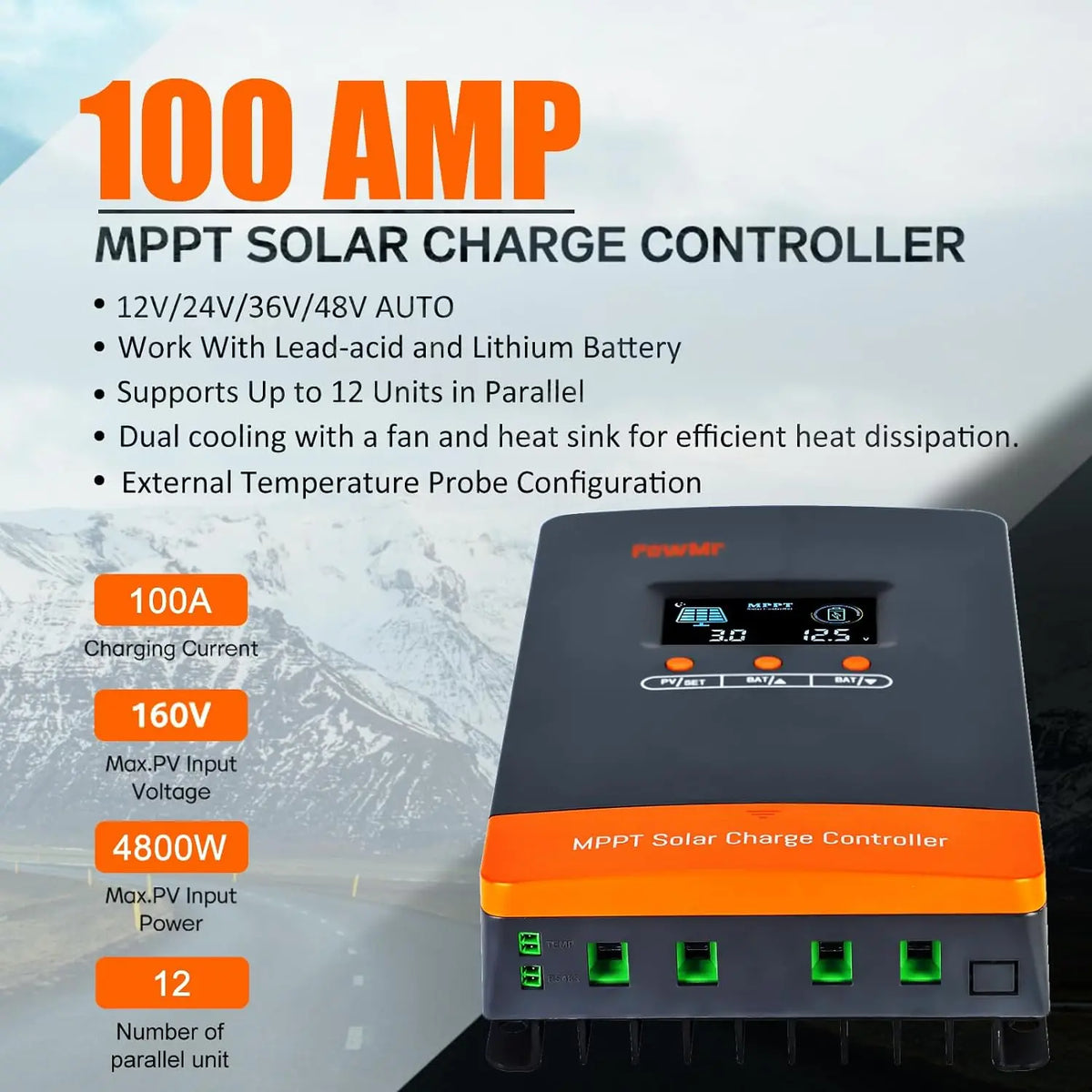

Power your solar setup with a versatile MPPT Solar Charge Controller that scales from 60A to 100A for 12V/24V/36V/48V systems.

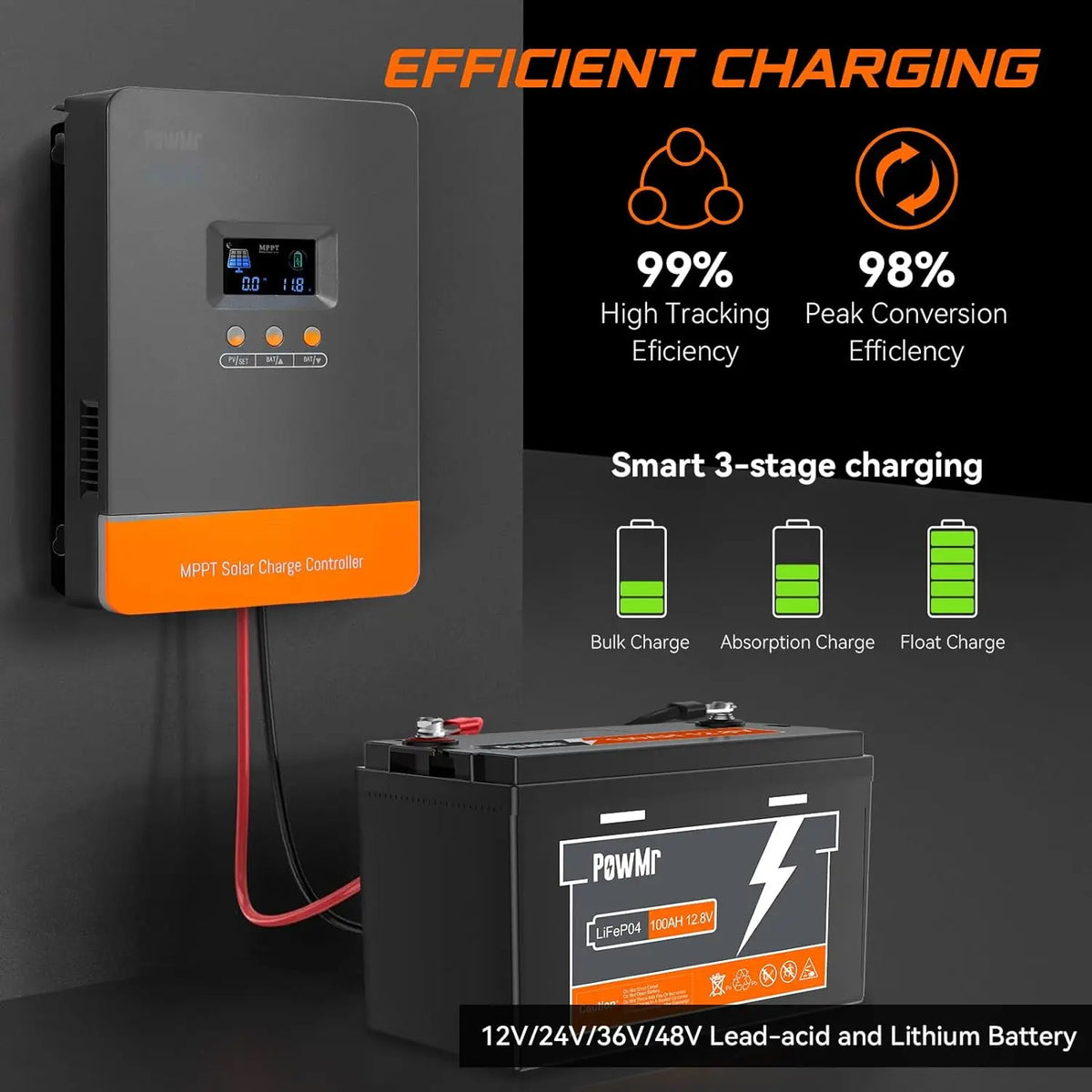

- Maximize every sun hour with a 3-stage MPPT charging algorithm and adaptive boost charging that optimize voltage and current for your battery type.

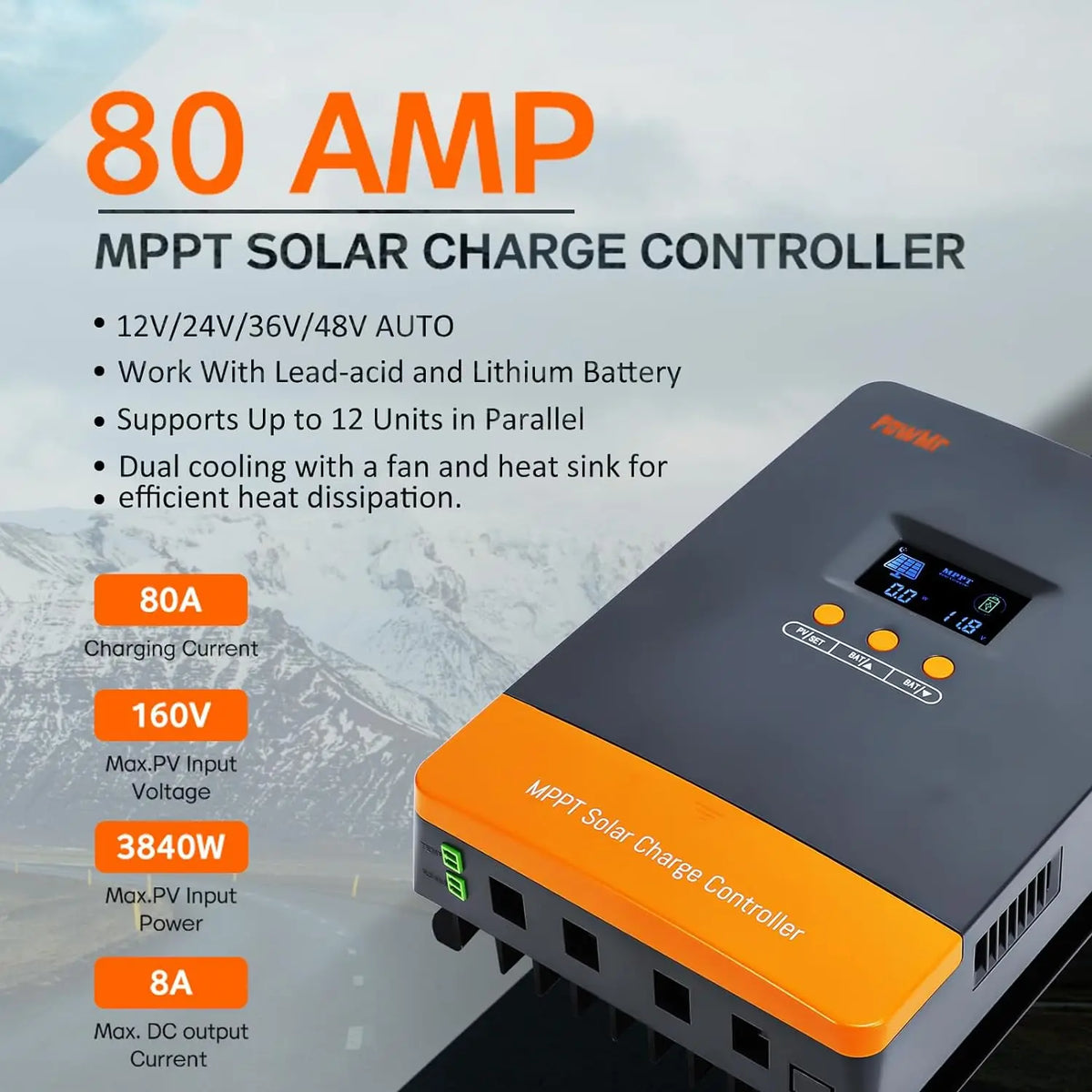

- Choose from 60A, 80A, or 100A models and run up to 12 units in parallel to expand your solar array and energy storage.
- Supports multiple battery chemistries (flooded lead-acid, gel, and lithium) with integrated charging presets and external temperature probe configuration for precise temperature compensation.
- Handles high input voltage with up to 160V open-circuit PV, is compatible with 12V/24V/36V/48V systems, and is CE certified.
Models |
60A |
80A |
100A |
Solar Input Specification | |||
|
Max. Solar Array Open-Circuit
Voltage
|
160Vdc |
||
|
Maximum Input Power:
For 12V System
For 24V System
For 36V System
For 48V System
|
720W 20-80Vdc;
1440W 37-105Vdc;
2100W 50-160Vdc;
2800W 72-160Vdc.
|
960W
1920W
2880W
3840W
|
1200W
2400W
3600W
4800W
|
Charge Mode | |||
Charging Technology |
MPPT |
||
Charging Algorithm |
3 Stages |
||
Nominal System Voltage |
12V/24V/36V/48V |
||
Battery Voltage Range |
9~60V |
9~60V |
|
Rated Charging Current |
60A |
80A |
100A |
Conversion Efficiency |
≤98% |
||
MPPT Efficiency |
>99% |
||
Self-Consumption |
0.7W-1.2W |
44mA/12V; 26mA/24V; 18mA/36V; 12mA/48V |
|
Environment Specification | |||
Operating Temperature Range |
-35℃~+45℃ |
||
Humidity Range |
≤95%，Non-condensing |
||
Altitude |
<3000m |
||
Protection Level |
IP32 |
||
Parallel Function |
Up to 12 Units in Parallel |
||
