Keep your series-connected cells perfectly balanced with bidirectional energy transfer that auto-adjusts to changing conditions.
- You gain automatic, bidirectional energy transfer to balance voltage differences as small as 10 mV, extending pack life without manual intervention.
- Your system stays balanced 24/7, compatible with LiFePO4, VRLA, NiCd, and NiMH packs to reduce overcharge and undercharge risks.

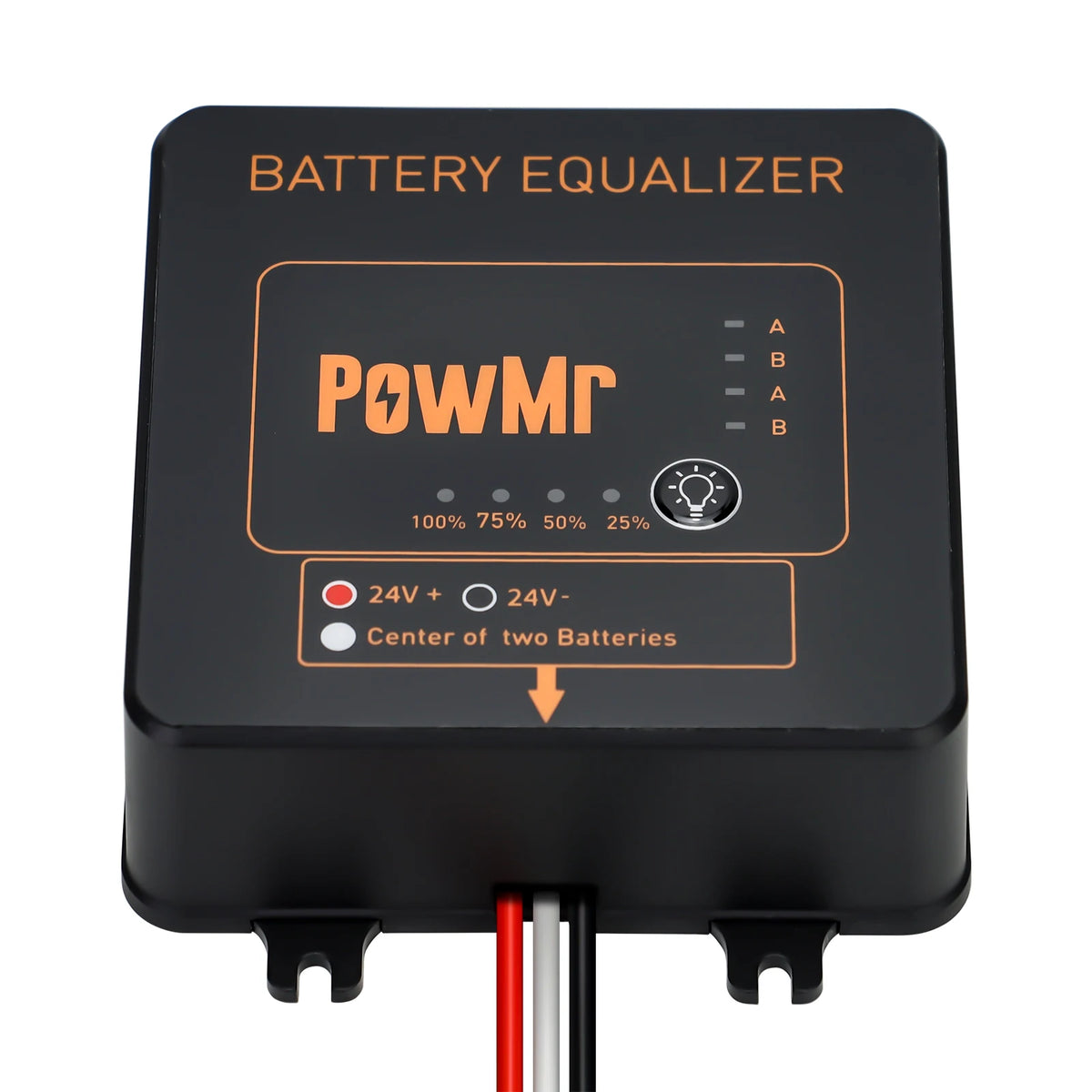

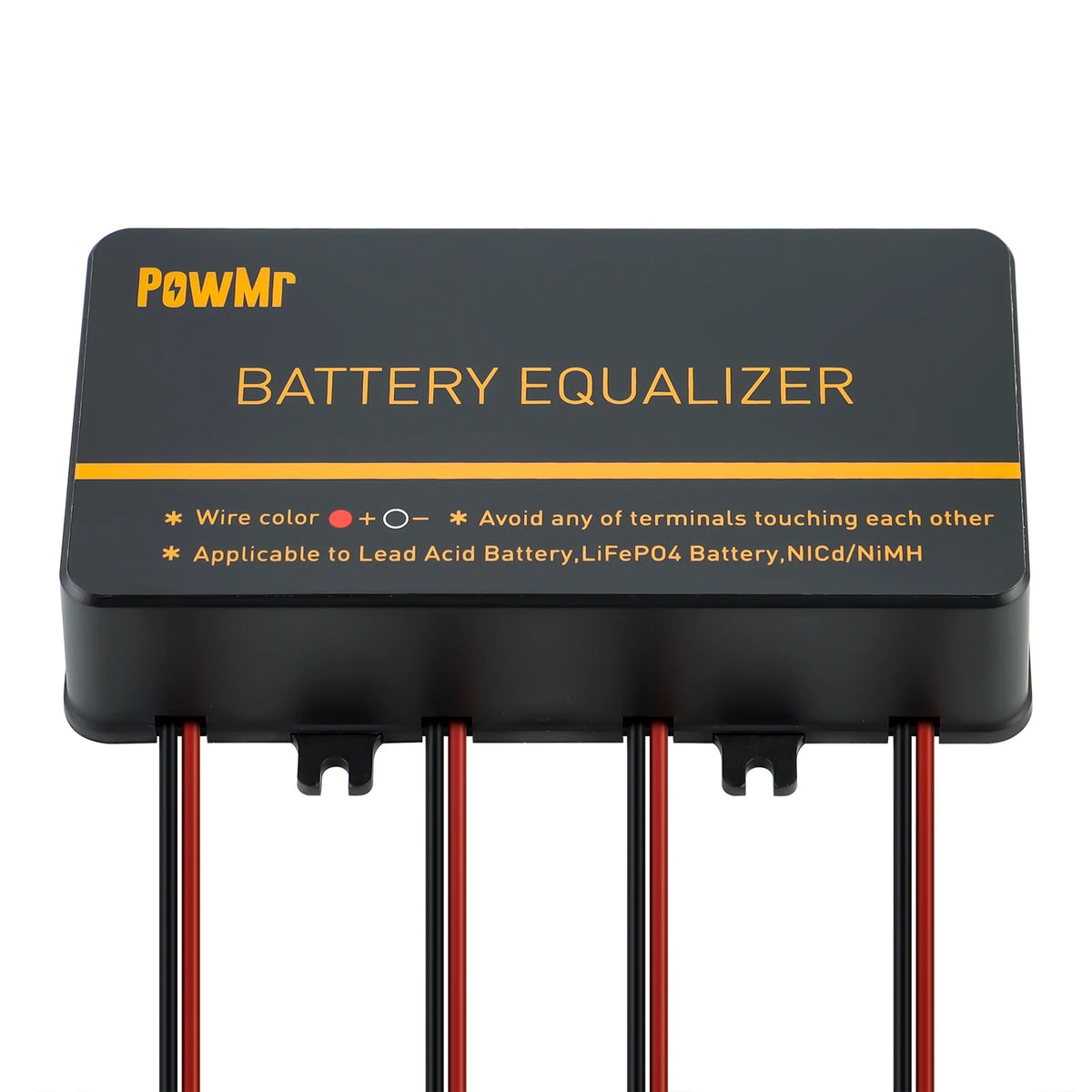

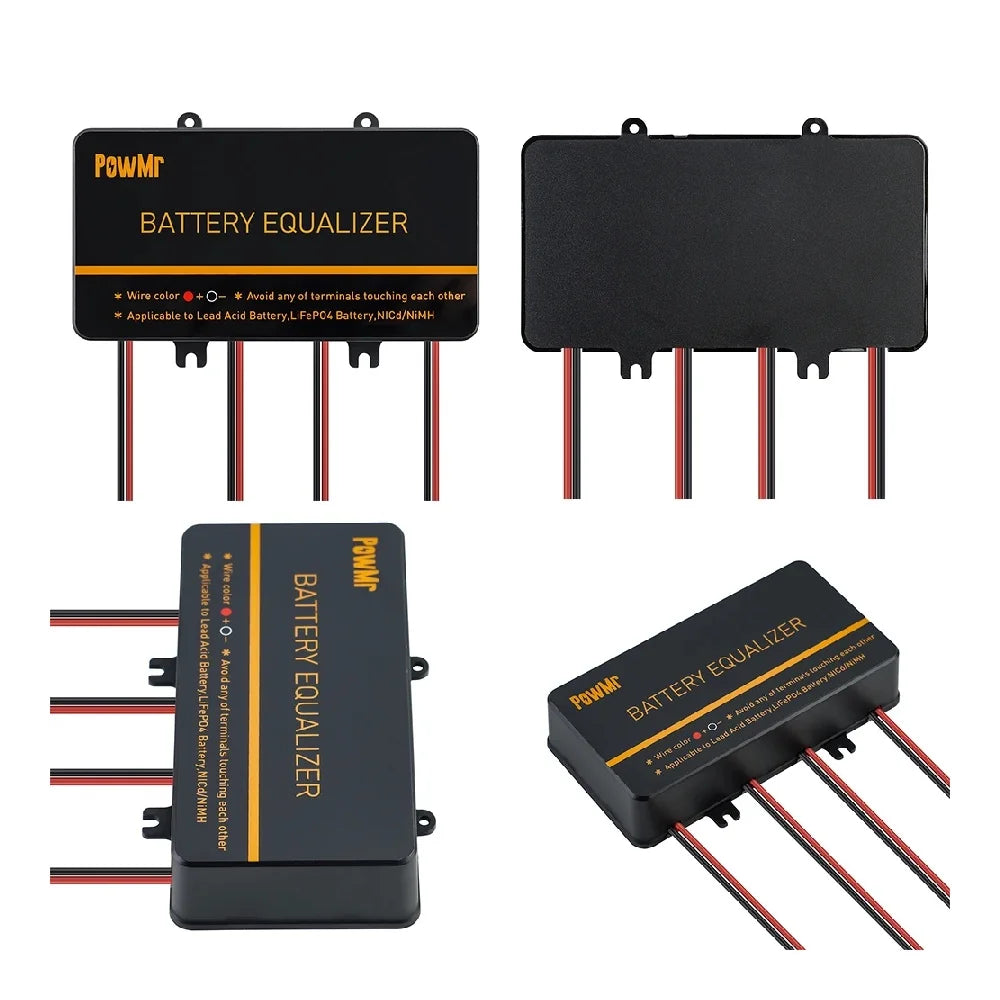

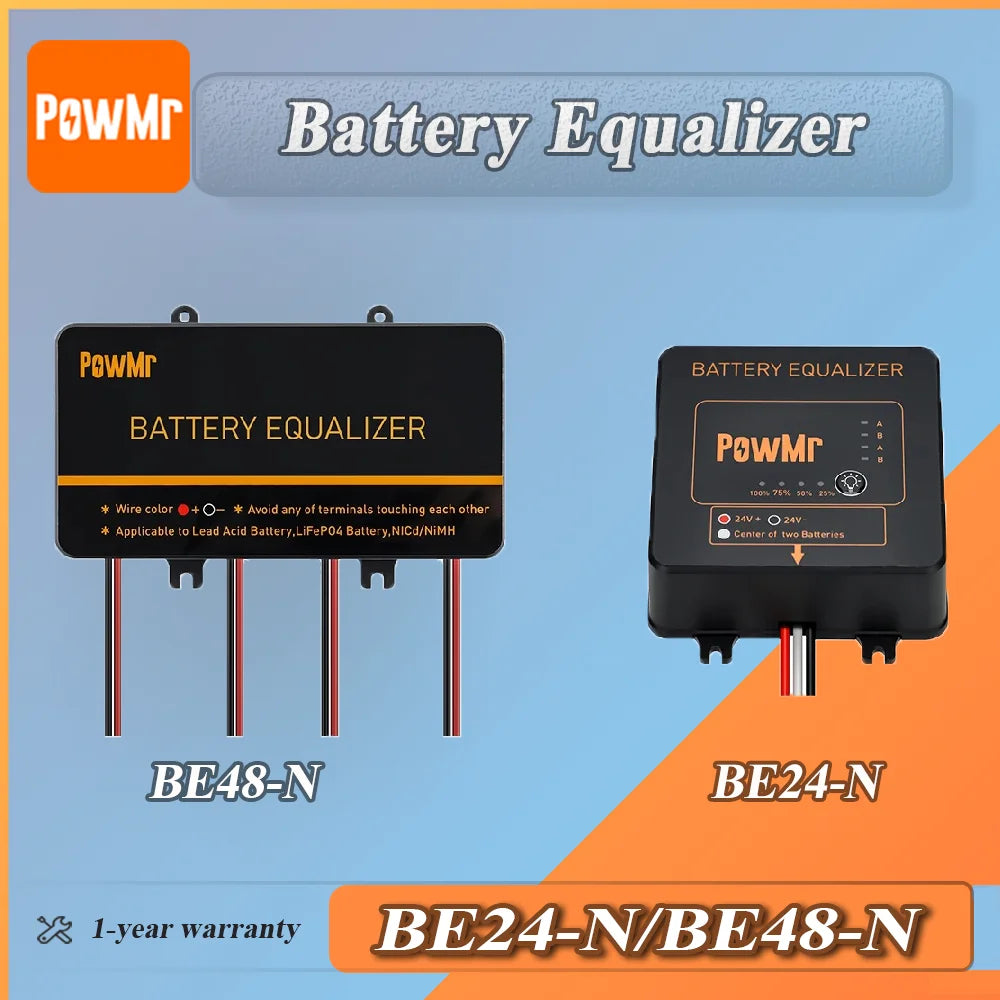

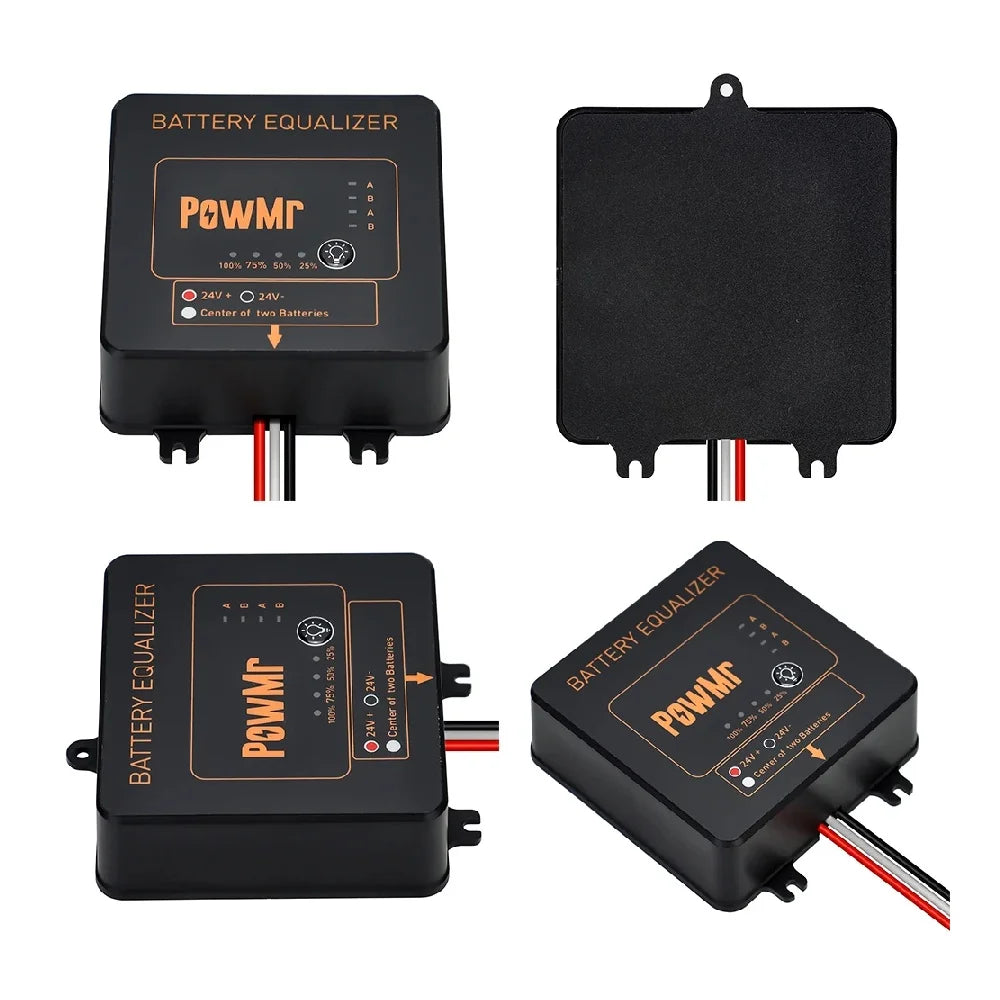

- Two models: BE24-N for 2×12V configurations (0–5A) and BE48-N for 4-cell configurations (0–10A); supports single-cell voltages from 2.4V to 12V.

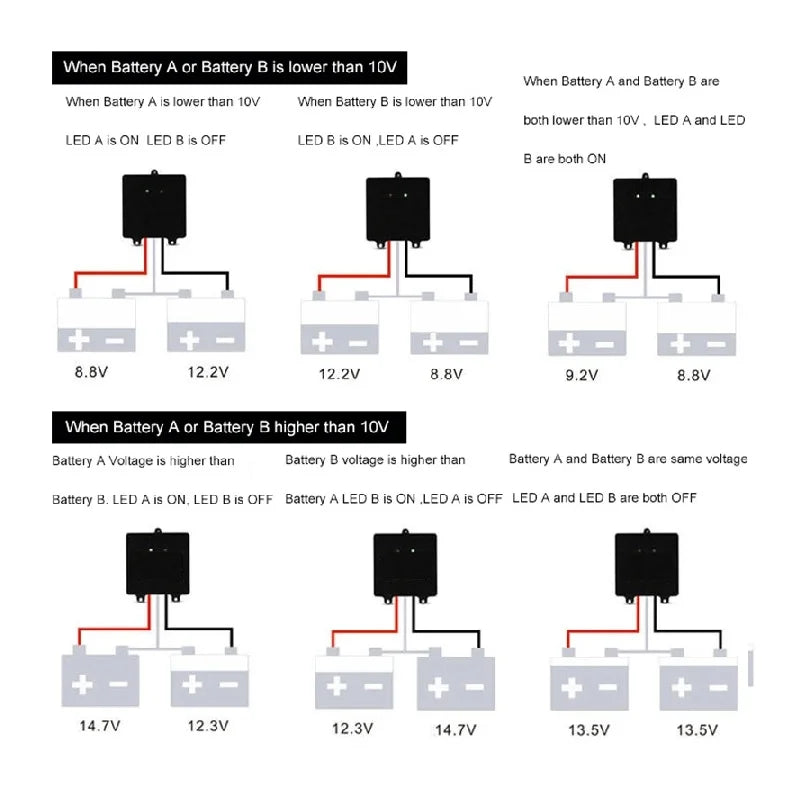

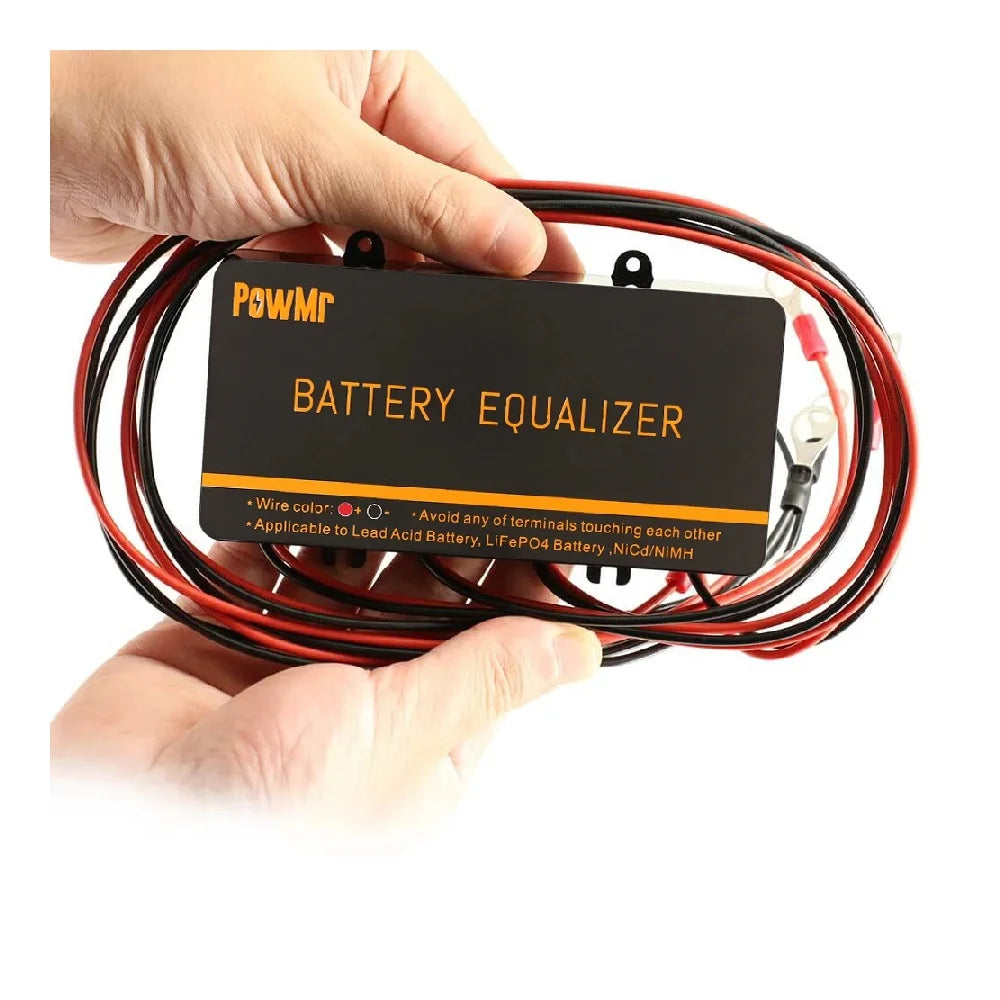

- Compact, protected wiring: reverse polarity protection and low-voltage disconnect (10V on BE24-N, 1.8V on BE48-N); red (+), black (−) power leads and a white signal lead for the proper series orientation.
|
Model
|
BE24-N |
BE48-N |
Battery nominal voltage |
2*12V |
4*(2.4V/3.6V/6V/9V/12V) |
Optimizing current |
0-5A |
0-10A |
Qulescent current |
<3mA |
5mA(12V)1.2mA(2.4V) |
Dimensions |
78*78*28mm |
69*129*28 mm |
Protection |
Reverse polarity protection |
Reverse polarity protection |
Low Voltage Disconnect |
10V |
1.8V |
