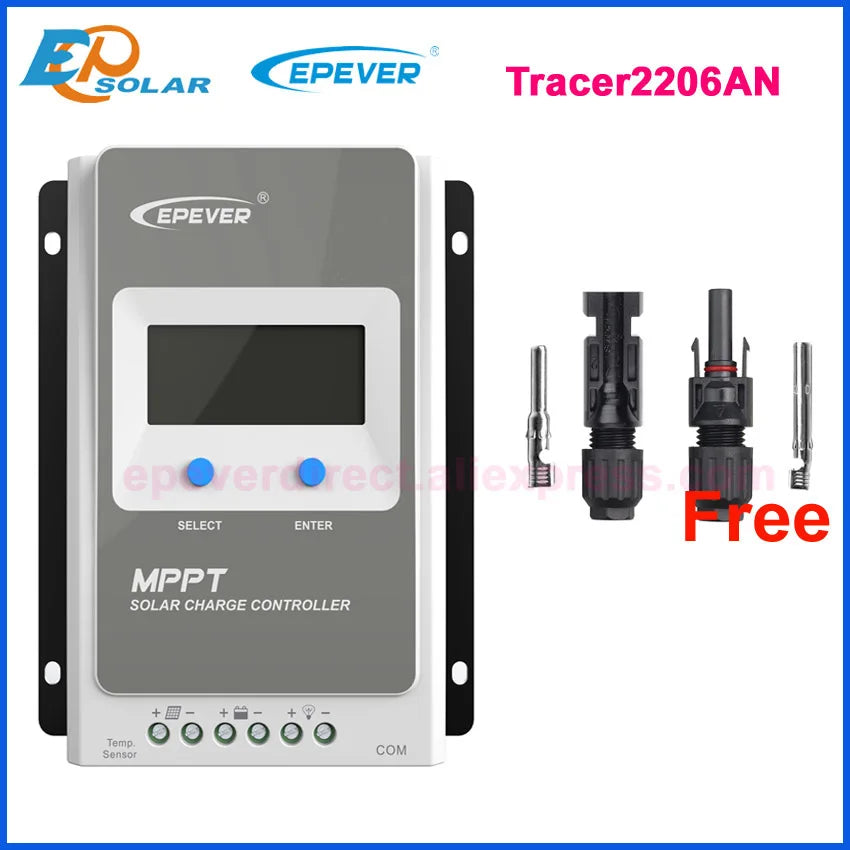

EVSOLAR MPPT Tracer Series 20A Solar Charge Controller

EVSOLAR MPPT Tracer Series 20A Solar Charge Controller

$182.99 USD
$0.00 USD $182.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Rated Voltage
Ships From

Maximize solar energy with precision MPPT control that tracks the sun efficiently.

  • MPPT tracking efficiency above 99.5% and maximum charge conversion efficiency up to 98%, delivering up to 30% more energy than PWM controllers.
  • Supports 12/24V auto system; battery types include Lead-acid (sealed/gel/flooded) and Lithium (LiFePO4/Li(NiCoMN)O2); battery input 8–32V; max PV open-circuit voltage 60V (46V at 25°C).
  • Standard Modbus communication protocol with RS485 interface, plus real-time energy statistics and multiple load modes with charging power and current limit functions.
  • Compact Tracer2206AN unit with IP30 enclosure, operating from -25°C to +45°C, and a weight of 0.94 kg for versatile mounting.

  • MPPT tracking efficiency above 99.5%

  • Maximum charge conversion efficiency as high as 98%

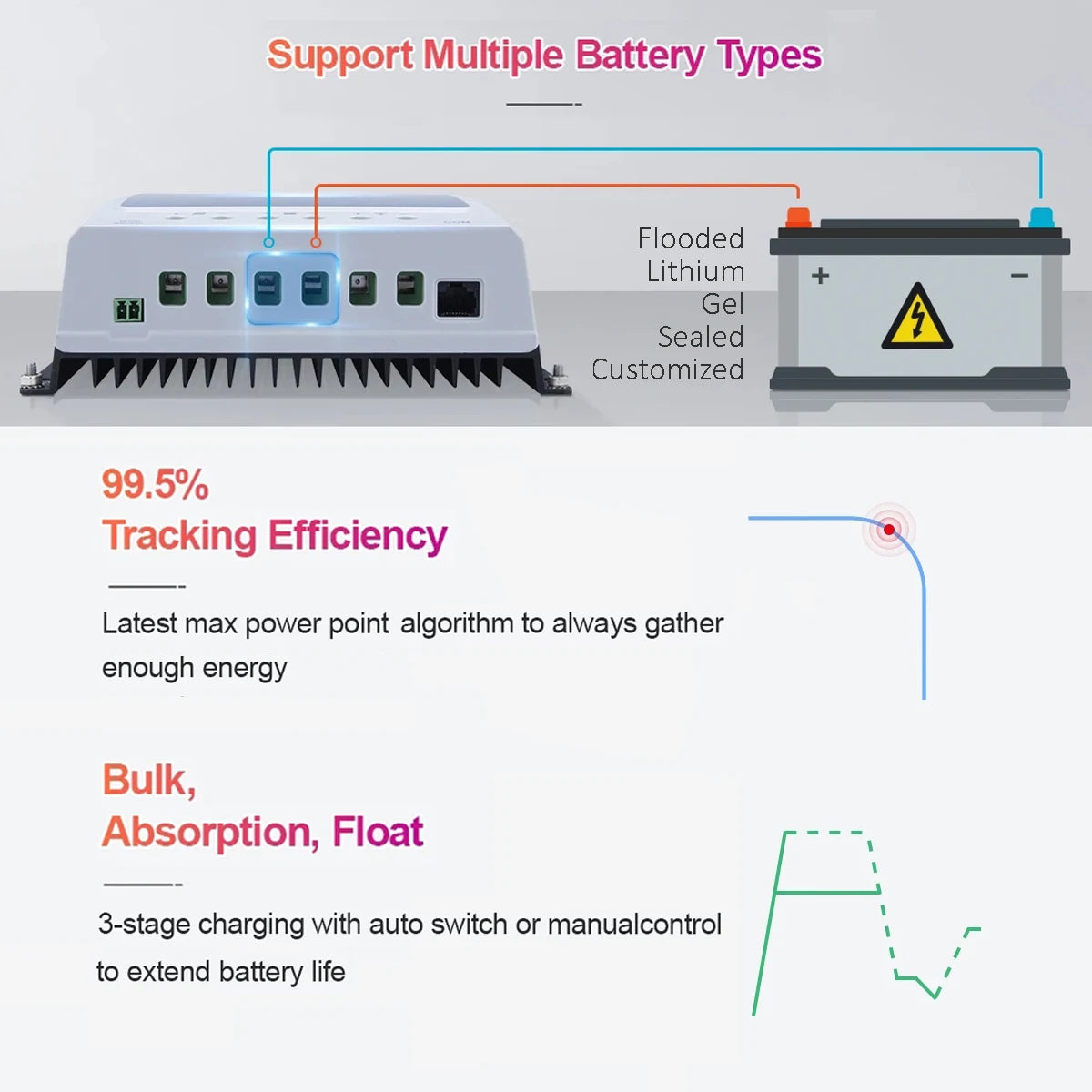

  • Support lead-acid and lithium-ion batteries

  • Multiple load work modes

  • Charging power and current limitation function

  • High-temperature charging power derating function

  • Standard Modbus communication protocol with RS485 interface

  • Real-time energy statistics function

Model

Tracer2206AN

Nominal system voltage

12/24VDC/Auto

Battery type

Lead-acid(Sealed/Gel/Flooded)/Lithium(LiFePO4/Li(NiCoMN)O2)/User

Battery input voltage range

8~32V

Rated charge current

20A

Rated discharge current

20A

Rated charge power

260W/12V
520W/24V

Max. conversion efficiency

≤98.0%

Tracking efficiency

≥99.5%

MPP voltage range

(Battery Voltage+2V)~36V

Max. PV open circuit voltage

60V(At minimum operating enviornment temperature)
46V(At 25℃ environment temperature)

Equalization voltage

Sealed:14.6V,Flooded:14.8V,User-defined:9-17V

Boost voltage

Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V

Float voltage

Gel/Sealed/Foolded:13.8V,User-defined:9-17V

Low voltage reconnect voltage

Gel/Sealed/Foolded:12.6V,User-defined:9-17V

Low voltage disconnect voltage

Gel/Sealed/Foolded:11.1V,User-defined:9-17V

Self-consumption

≤12mA

Temperature compensation
(for lead-acid battery)

-3mV/℃/2V(Default)

Relative humidity

≤95%,N.C.

Enclosure

IP30

Communication interface

RS485(RJ45)

Grounding

Common Negative

Operating temperature range

-25℃~+45℃(100% input and output)

Dimensions(LxWxH)(mm)

220 x 154 x 52

Net weight

0.94kg

Package List


  • MPPT tracking efficiency above 99.5%

  • Maximum charge conversion efficiency as high as 98%

  • Support lead-acid and lithium-ion batteries

  • Multiple load work modes

  • Charging power and current limitation function

  • High-temperature charging power derating function

  • Standard Modbus communication protocol with RS485 interface

  • Real-time energy statistics function

Model

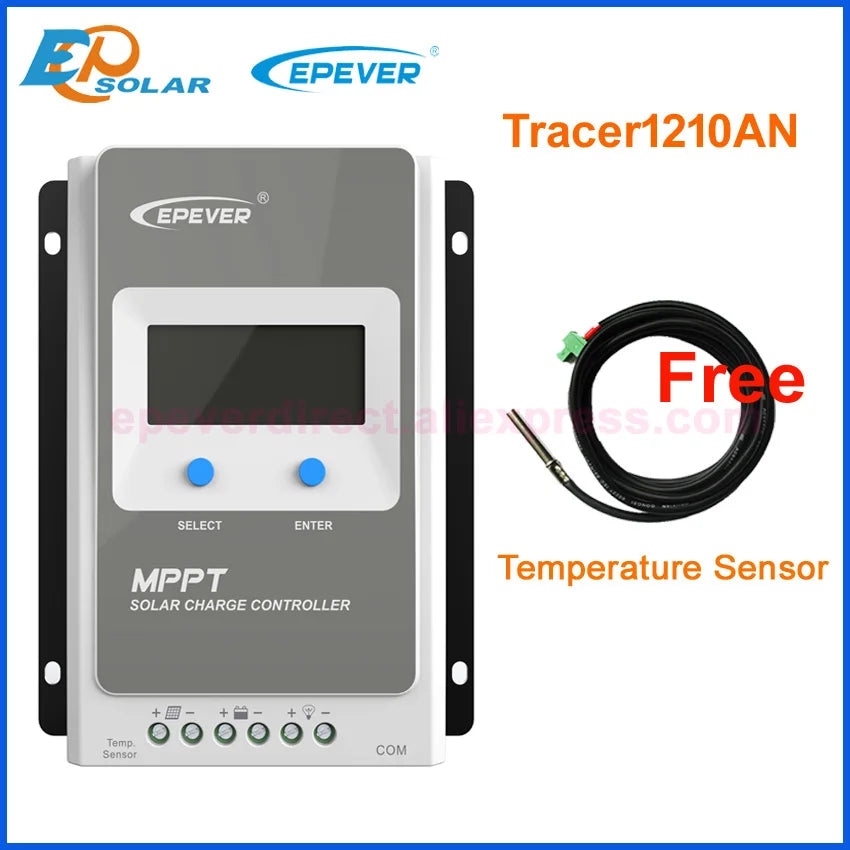

Tracer1210AN G3

Tracer2210AN G3

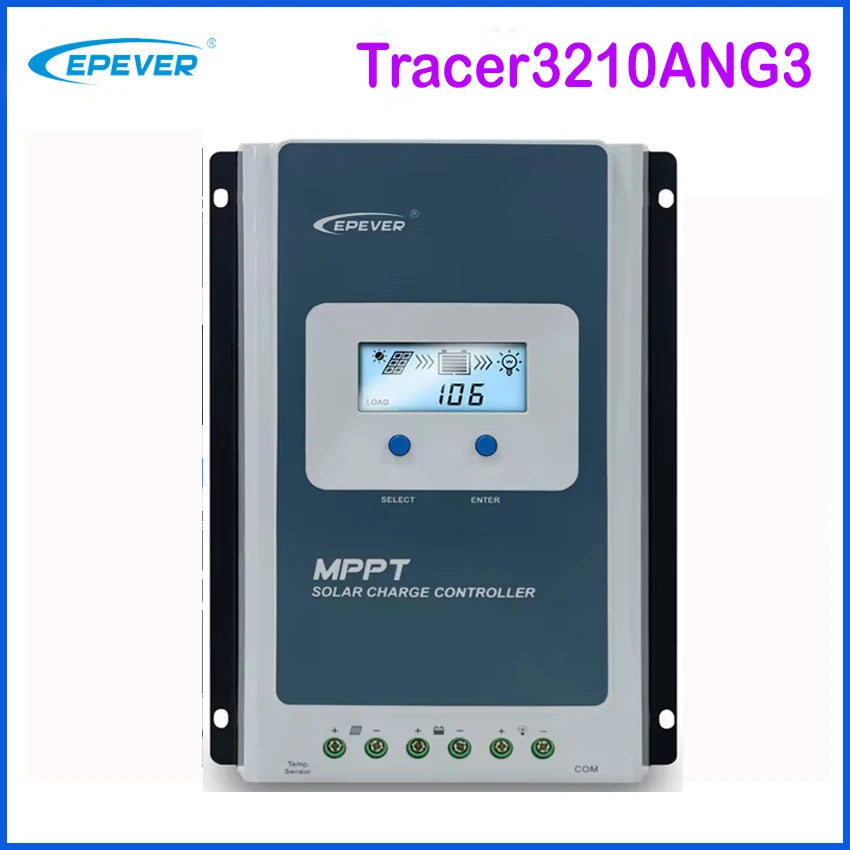

Tracer3210AN G3

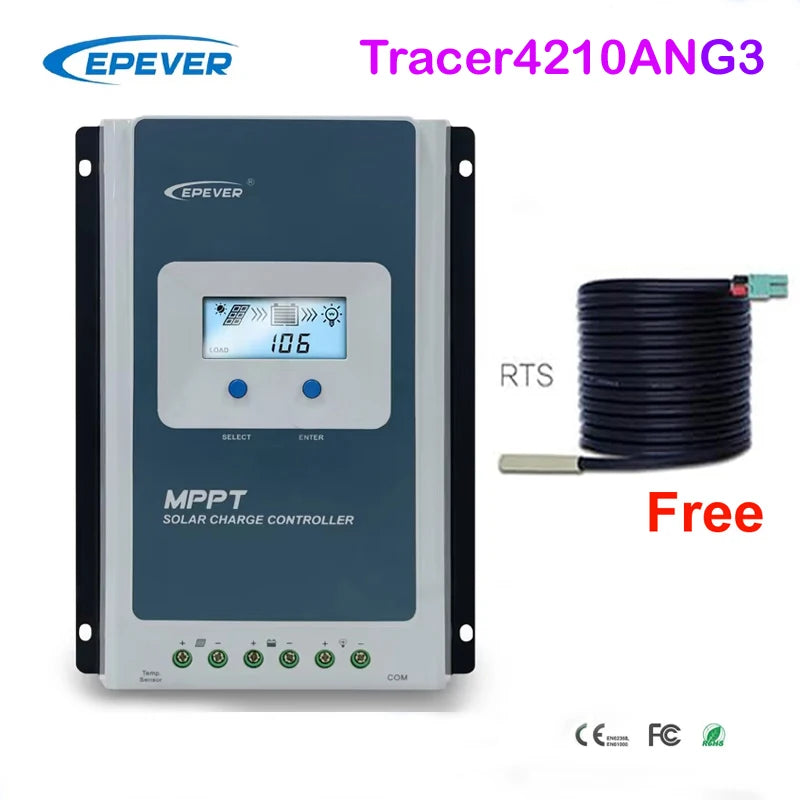

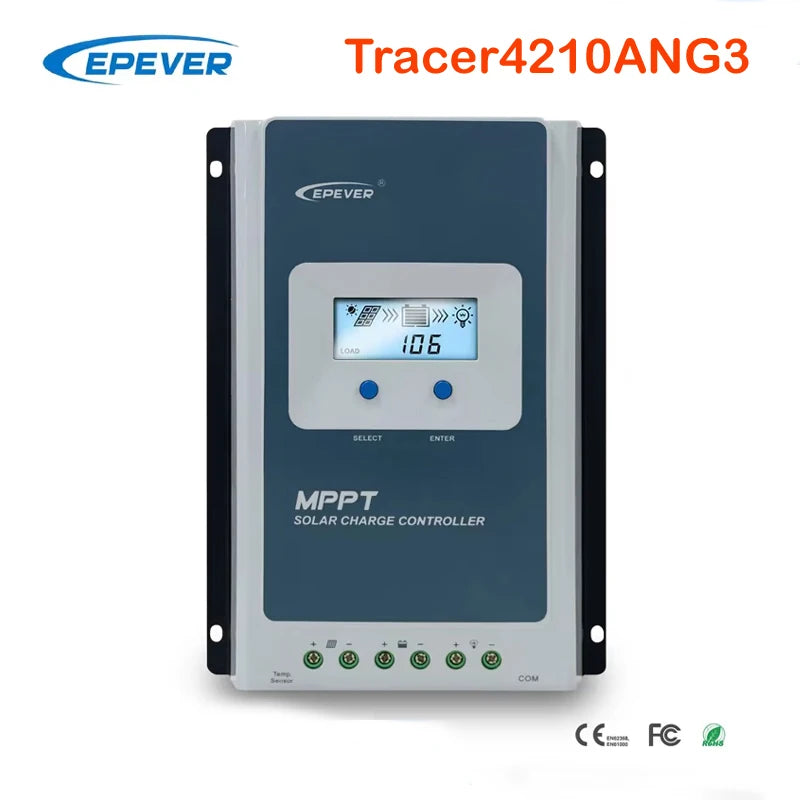

Tracer4210AN G3

Battery rated voltage

12/24VDC/Auto

Controller work voltage range

8~31V

Rated charge current

10A

20A

30A

40A

Rated discharge current

10A

20A

30A

40A

Rated charge power

130W/12V
260W/24V

260W/12V
520W/24V

390W/12V
780W/24V

520W/12V
1040W/24V

MPP voltage range

(Battery Voltage+2V)~72V

Max. PV open circuit voltage

100V(At minimum operating enviornment temperature)
92V(At 25℃ environment temperature)
Static Losses

≤8mA(12V)

≤5mA(24V)
Discharge-circuit Voltage Drop

-3mV/℃/2V(Default)

Relative humidity

≤95%,N.C.

Enclosure

IP30

Communication interface

RS485(RJ45)

Grounding

Common Negative

Operating temperature range

-25℃~+45℃(100% input and output)

Dimensions(LxWxH)(mm)

172 x 139 x 44

220 x 154 x 52

228 x 164 x 55

252 x 180 x 63

Net weight

0.57kg

0.94kg

1.26kg

1.65kg
